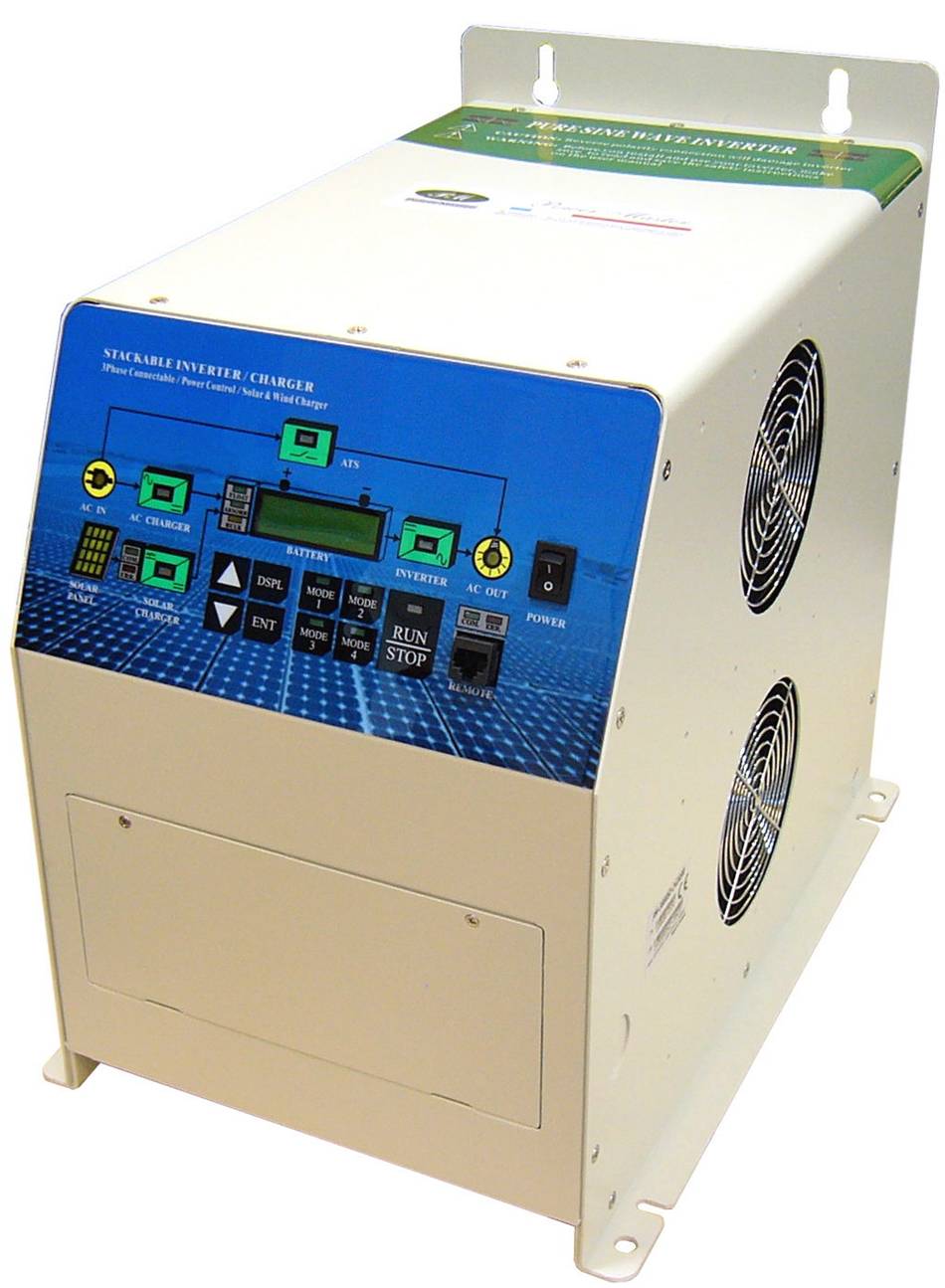

Inverter solar PM-6000SI

Mã sản phẩm PM-6000SI

Số lượng

Thông tin tóm tắt sản phẩm

More inverters stackable 3 Phase connectable Uninterrupted AC power (UPS function) Power Control - Dealing with limited generator or shore side power Power Assist - Boosting the capacity of shore or generator power LCD display for parameter setting and error messages Programming auxiliary rel

Hỗ trợ mua hàng

0987599957 - 01222544688

automation.saigon

dynamic_project

Description:
Stackable Inverter ~ When you need more power one day. Stack one more SI inverter to have more power.
Maximum 5pcs for each phase, 15pcs for 3phase.
3 Phase available ~ 2 or more SI inverters to have 3phase change is workable.
Solar charge controller: option and communicated with PM Premium series.
Premium series is stackable also. (Max. 10units).
PM provides off grid system at maximum 90KW inverter + 600Amp solar charge control.

Specifications:

MODEL	PM-6000SI-24	PM-6000SI-48
INVERTER
Input Voltage Range (VDC)	19~32VDC	38~64VDC
Output Voltage (VAC)	185~240VAC
Output Frequency	50Hz / 60Hz ± 0.1%
Output Voltage	Pure sine wave
THD	< 5%
Power Factor	All loads
Switch-on Behavior	Nominal output voltage within 20 msec.
Cont. Output Power at 25°C(W) (cos£c=1.0)	6000W
Maximum Power (W)	12000W
Maximum Efficiency (%)	88
Zero-load Power (W)	20W
CHARGER
Input Voltage Range (VAC)	200~250VAC
Input Frequency	45~55Hz / 55~65Hz
Power Factor	1
Charge Characteristic	4-stage adaptive
Maximum DC Voltage Ripple (Vrms)	< 1.25 V
Charge Voltage "Absorption" (VDC)	57.6V
Charge Voltage "Float" (VDC)	55.2V
Output Charge Voltage (VDC) Min.,Max.	22V,64V
Charge Current House Battery (A)	140A
Charge Current Starter Battery (A)	4A
AC INPUT SWITCH
Protected by Thermal Circuit Breaker	100A (110V) / 60A (220V)
Switch-over Time Inverter to AC Input	0 msec.
Switch-over Time AC Input to Inverter	0 msec.
Detection Time AC Input Fault	4 msec. to 10 msec.
Trip Level Mains to Inverter	90VAC / 180VAC
Trip Level Inverter to Mains	94VAC / 187VAC
Min.- Max. Frequency Range (50Hz/60Hz)	45~55Hz or 55~65Hz
GENERAL
Power Control	Yes
Power Assist	20A
Auto Transfer Switch (A)	30A
Multi-purpose Relay	3 relays
Protection	Output short circuit, Overload, Battery overvoltage, Battery undervoltage, Battery reverse polarity detection, Over temperature, High input voltage ripple
Common Characteristics	Operating temperature range: -20°C to +50°C (fan assisted cooling) Humidity: max 95% (non condensing)
Weight (kg)	48.1kg	46.5kg
Dimensions (L x W x H) mm	590 x 480 x 630 mm
OPTIONS
Solar Charger	SCC Series PM-SCC-45A-1248 / PM-SCC-60A-1248 (Max. 10 sets for parallel connection)
Remote Controller	Remote monitoring available, optional cables: 3M/15M
Battery Temperature Sensor (BTS)	Compensation for the battery charging voltage and current
